ENGINE

Engine Type 1795cc liquid-cooled 52° V-twin
Bore and Stroke 101mm x 112mm
Compression Ratio 9.0:1
Valve Train SOHC; three valves per cylinder
Induction PGM-FI with automatic choke
Ignition Digital, two spark plugs per cylinder

DRIVE TRAIN

Transmission Five-speed
Final Drive Shaft

CHASSIS / SUSPENSION / BRAKES

Front Suspension 45mm inverted fork; 4.3 inches travel
Rear Suspension Dual shocks with five-position spring-preload adjustability; 3.9 inches travel
Front Brakes Dual 296mm disc with LBS three-piston calipers
Rear Brake Single 316mm disc with LBS twin-piston caliper
Front Tires 130/70R-18 radial
Rear Tires 180/55R-18 radial

DIMENSIONS

Rake (Caster Angle): 32.0°
Trail 144mm (5.7 inches)
Wheelbase 67.5 inches
Seat Height 27.6 inches
Curb Weight 774 pounds
Fuel Capacity 4.8 gallons

OTHER

Available Colors Black, Candy Red Tribal

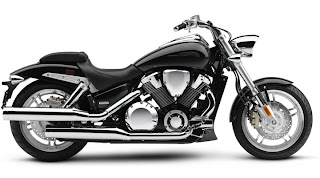

Model ID VTX1800F1

FACTORY WARRANTY INFORMATION

Warranty One-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
